External

This section describes the process and parameters needed when bootstrapping a device to an external LwM2M server.

Scanning the QR Code

When you scan the QR code from the sticker attached in your device, you will be redirected to this url: https://console.sensorbee.com/setup/<peeringcode>
Step 1: If you are NOT logged-in, you will be prompted with this message:
Image without caption

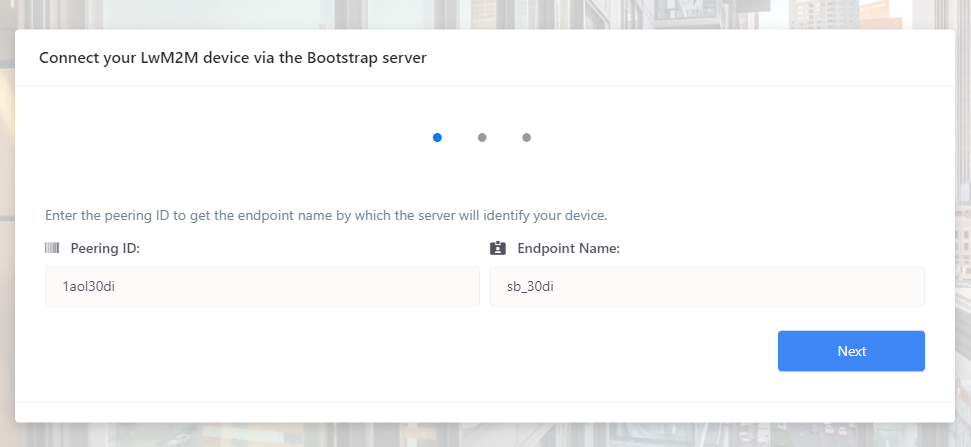

Step 2: Since this section talks about external, you will select “Use External”. This differs from the type “internal” because this won’t require any user authentication. Then you will be redirected to this view, wherein all fields are already prefilled for you.
Image without caption

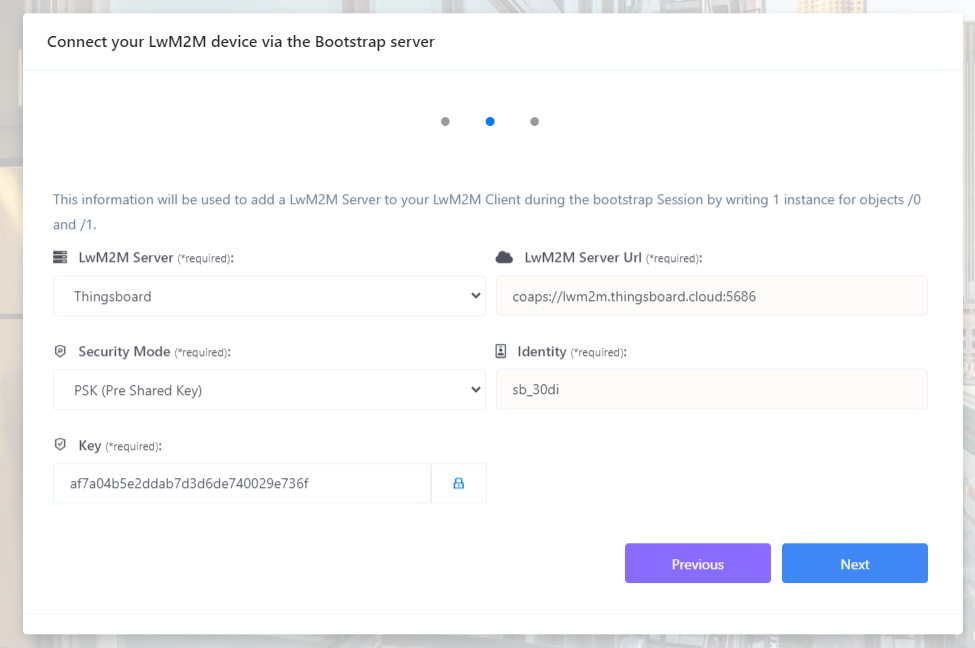

Step 3: In this step, you will be shown with the LwM2M server details such as the server url, security mode and Pre-shared key. But since you will be using external LwM2M, you have the option to change these parameters.
Image without caption
We have listed a couple of available LwM2M servers for you like Thingsboard and AvSystem. When you select either one of these, the LwM2M server URL will be prefilled for you. Otherwise, you have the option to select “others” which would allow you to enter the URL yourself.

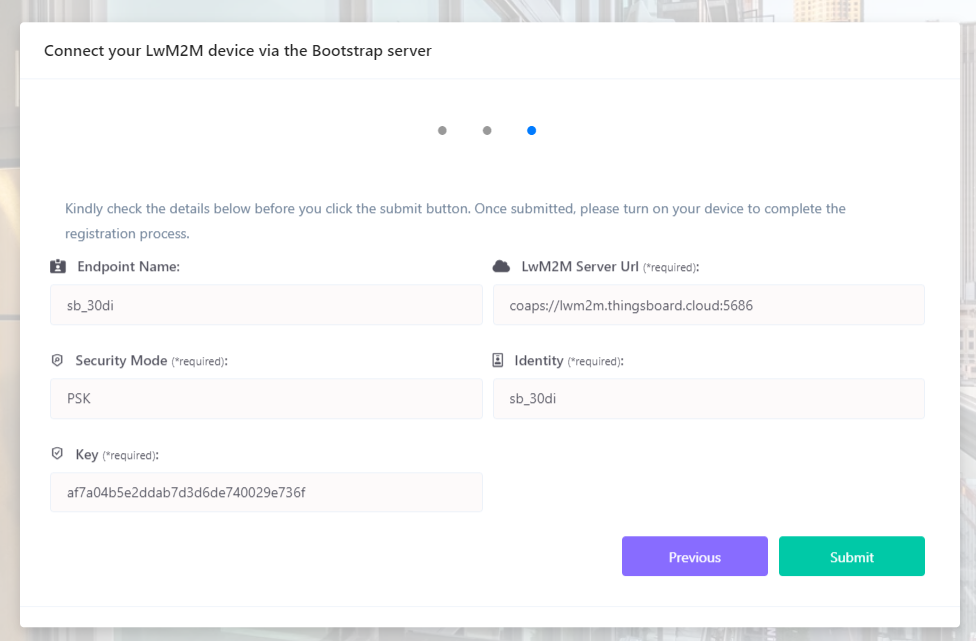

Step 4: This step is for the summary of details. You may review the details before you click submit.
Image without caption

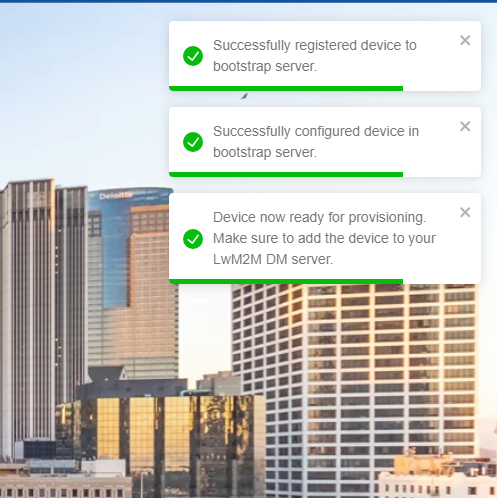

Step 5: After clicking submit, your device will be registered to our bootstrap server and will remain there for the next hour or until you turn it on. (Note: This device cannot be managed or viewed from the cloud portal).
Image without caption

Additional Information:

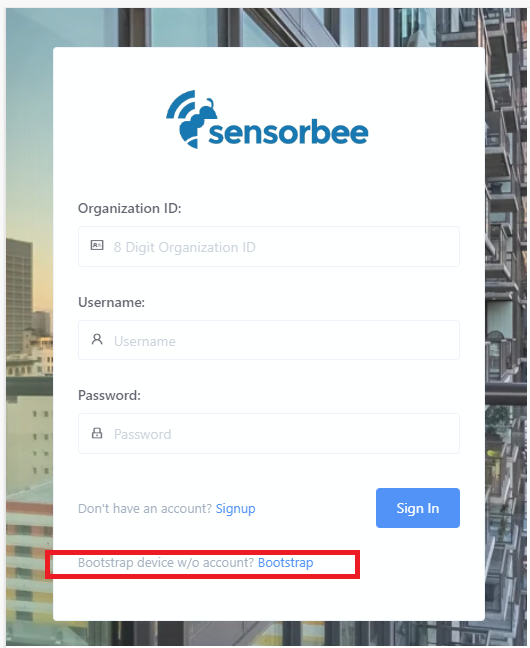

The process shown above is by scanning the QR code. However, in the cloud portal’s login page, there is an option there to bootstrap device externally without scanning. Just click the “Bootstrap” link, and you will be prompted with the bootstrap modal.
Image without caption
