The 14W (SB6103) solar panel is a high-efficiency module specifically tailored for Sensorbee Air products.

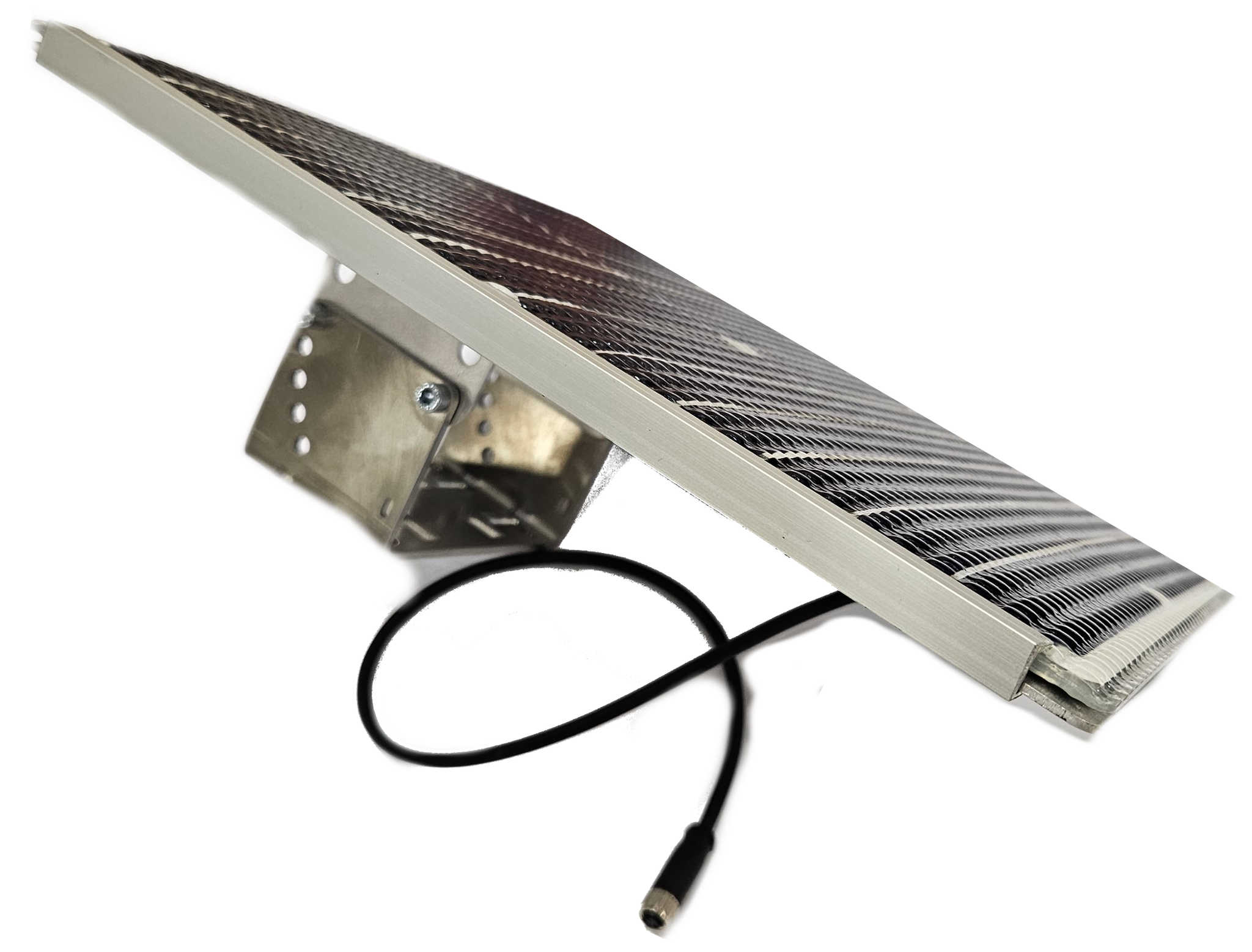

Figure 2.
The 14W solar panel, with dimensions of 290x275mm and a weight of 1.25kg, is a compact and lightweight power solution tailored for Sensorbee Air products. Designed for optimal performance, the panel can be adjusted with a tilt range from 45 to 90 degrees, ensuring maximum sunlight capture. It comes equipped with a 0.5m power cable, providing flexibility for device placement
If the cable is too short for your installation setup, we offer a 2m extension cable (SB9022).

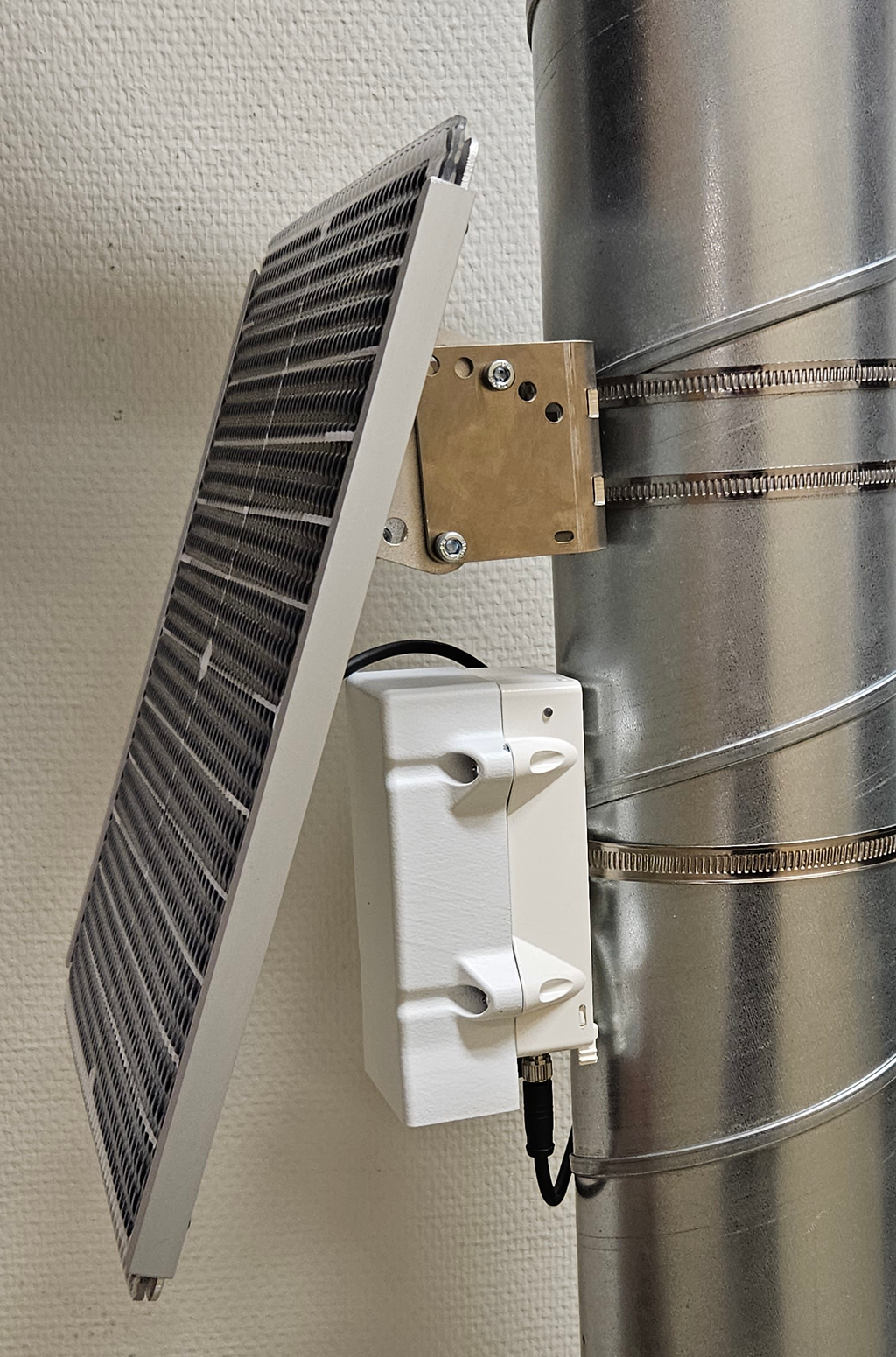

Figure 3 illustrates a mounting setup featuring the 14W solar panel paired with an Air Lite unit.
